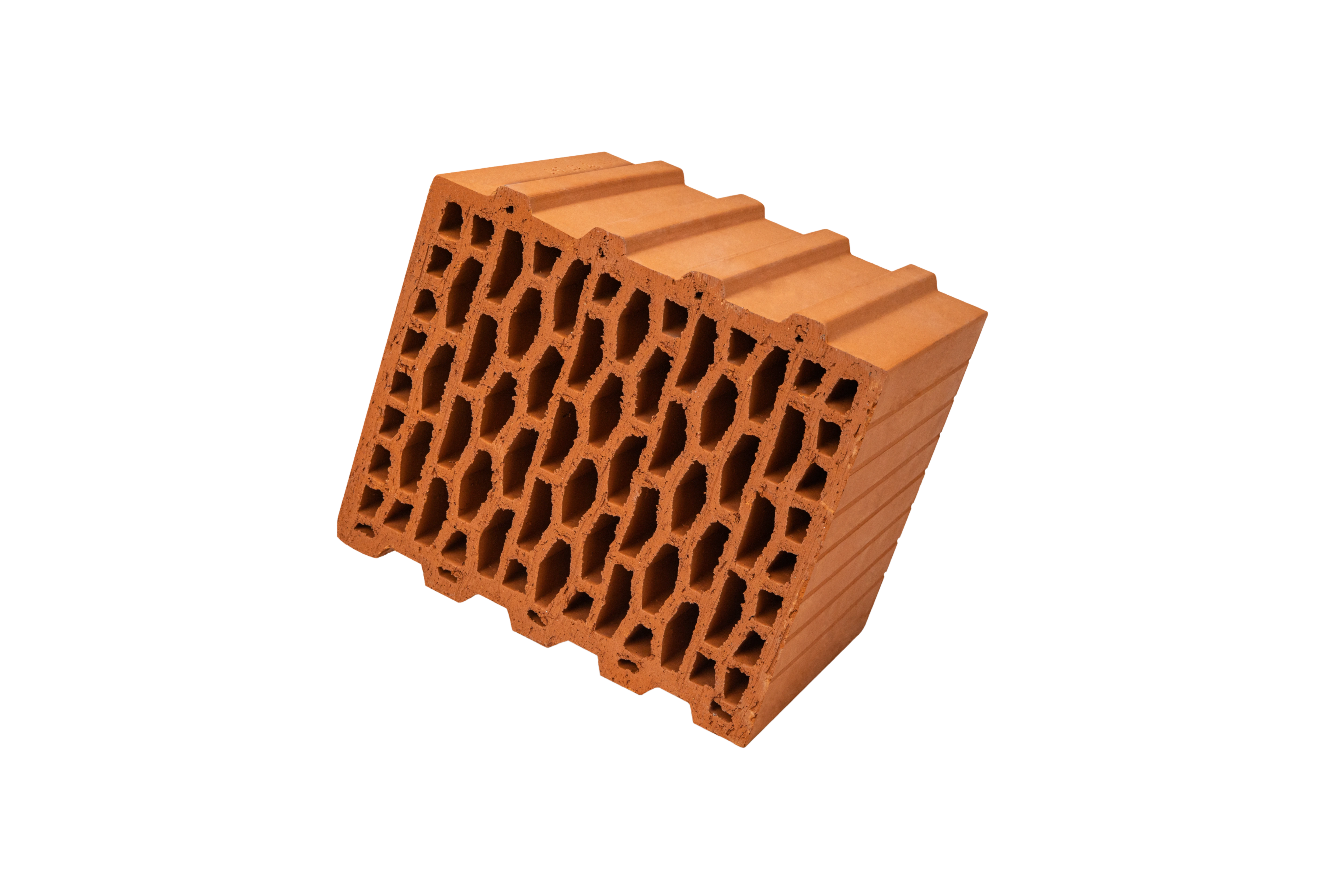

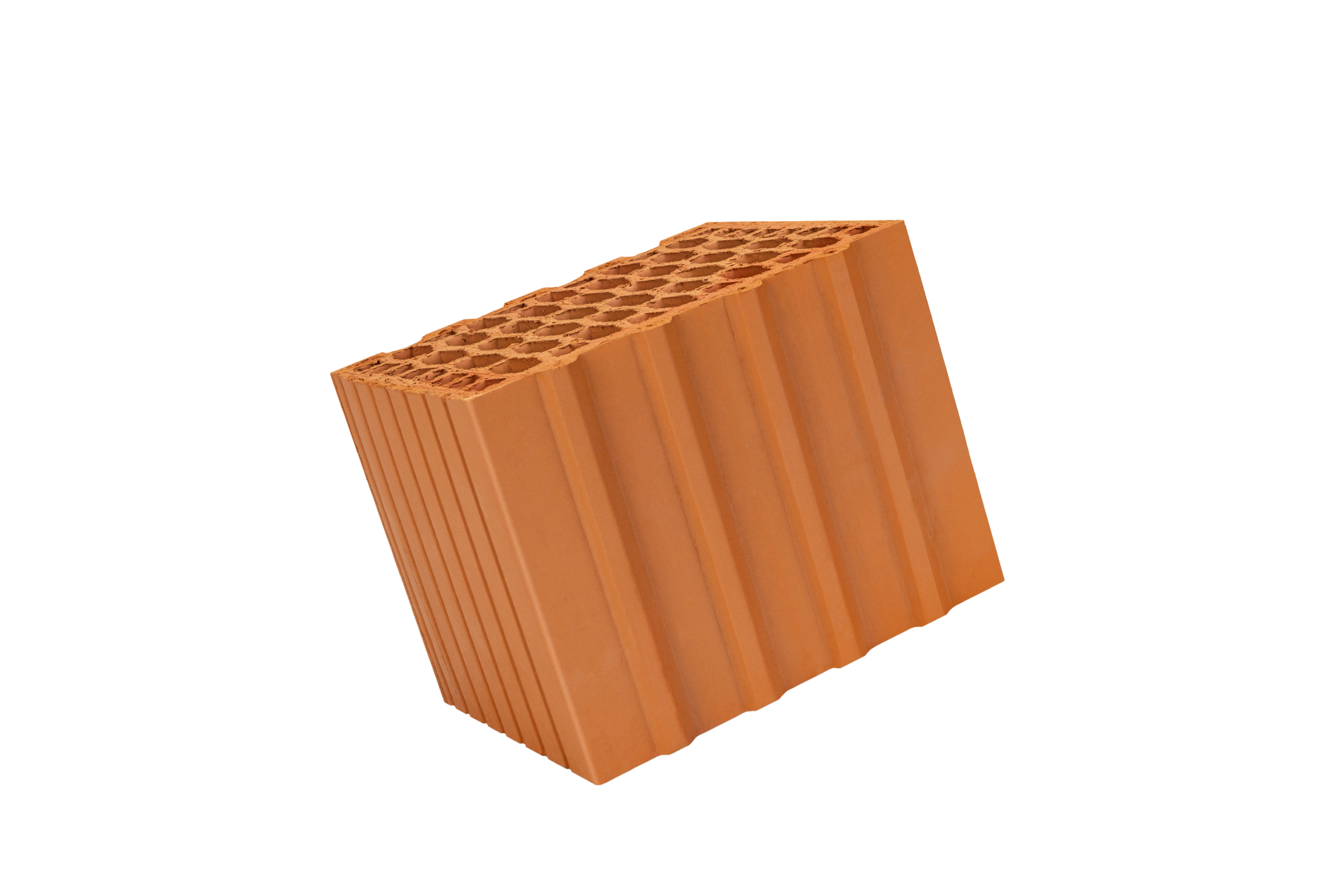

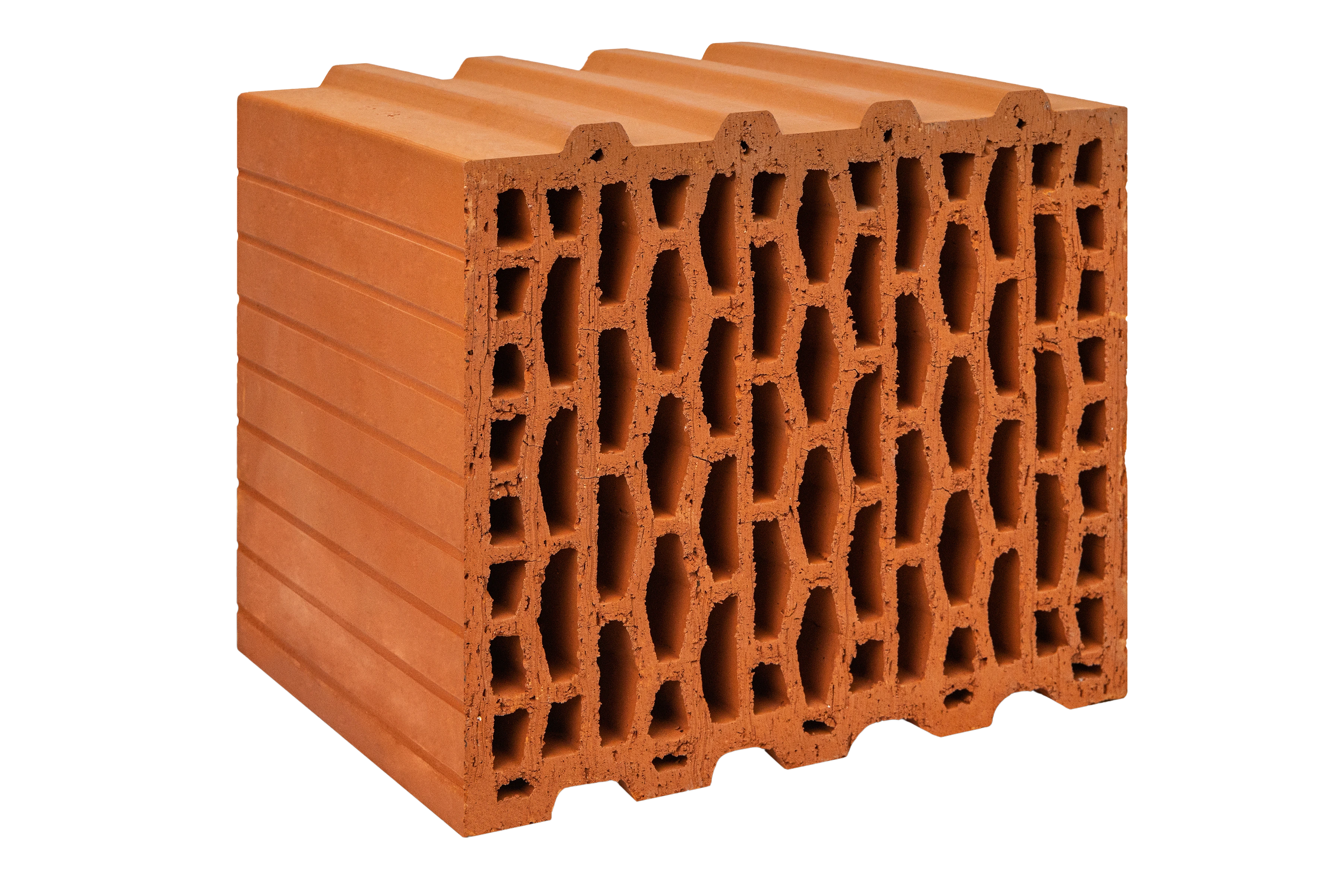

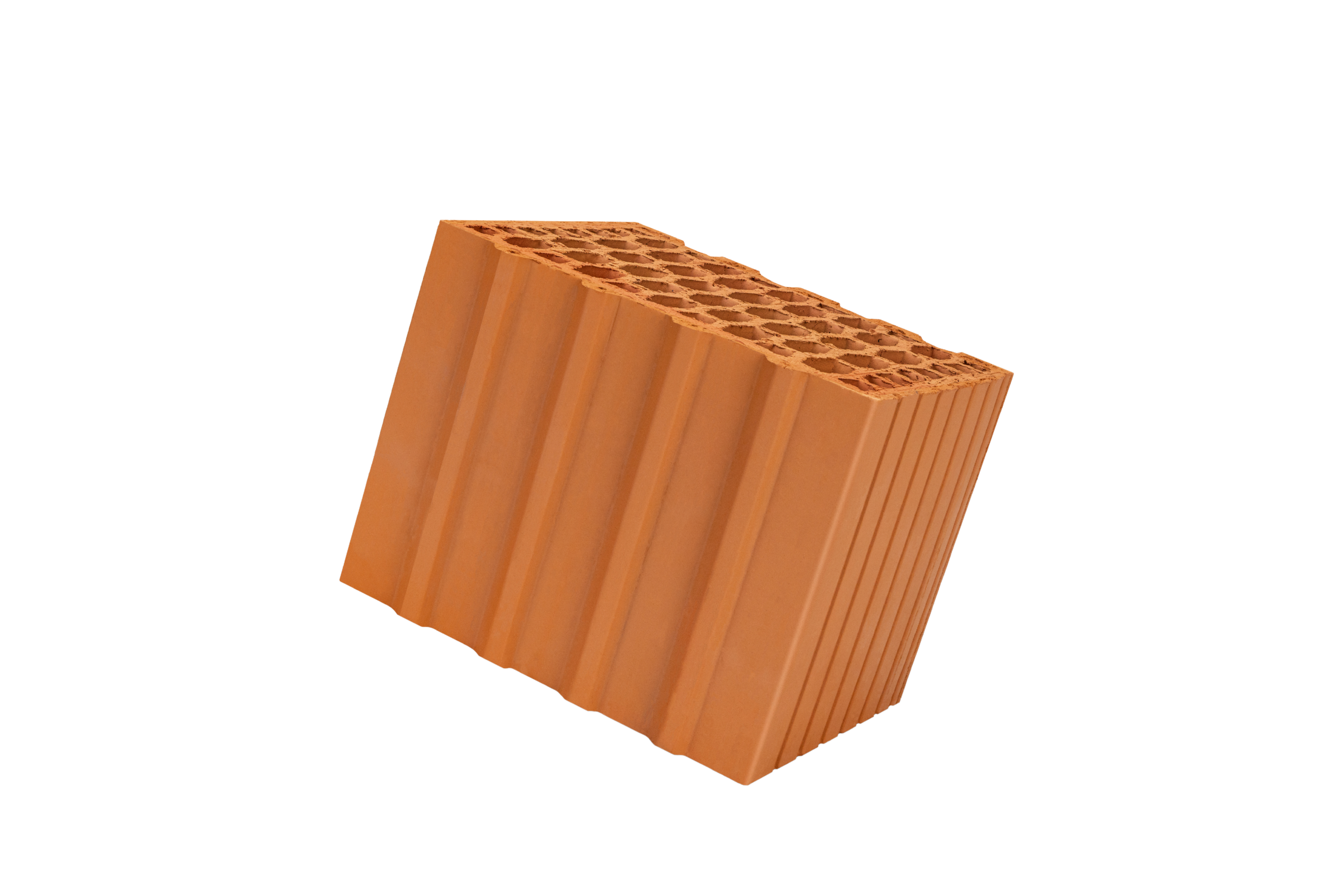

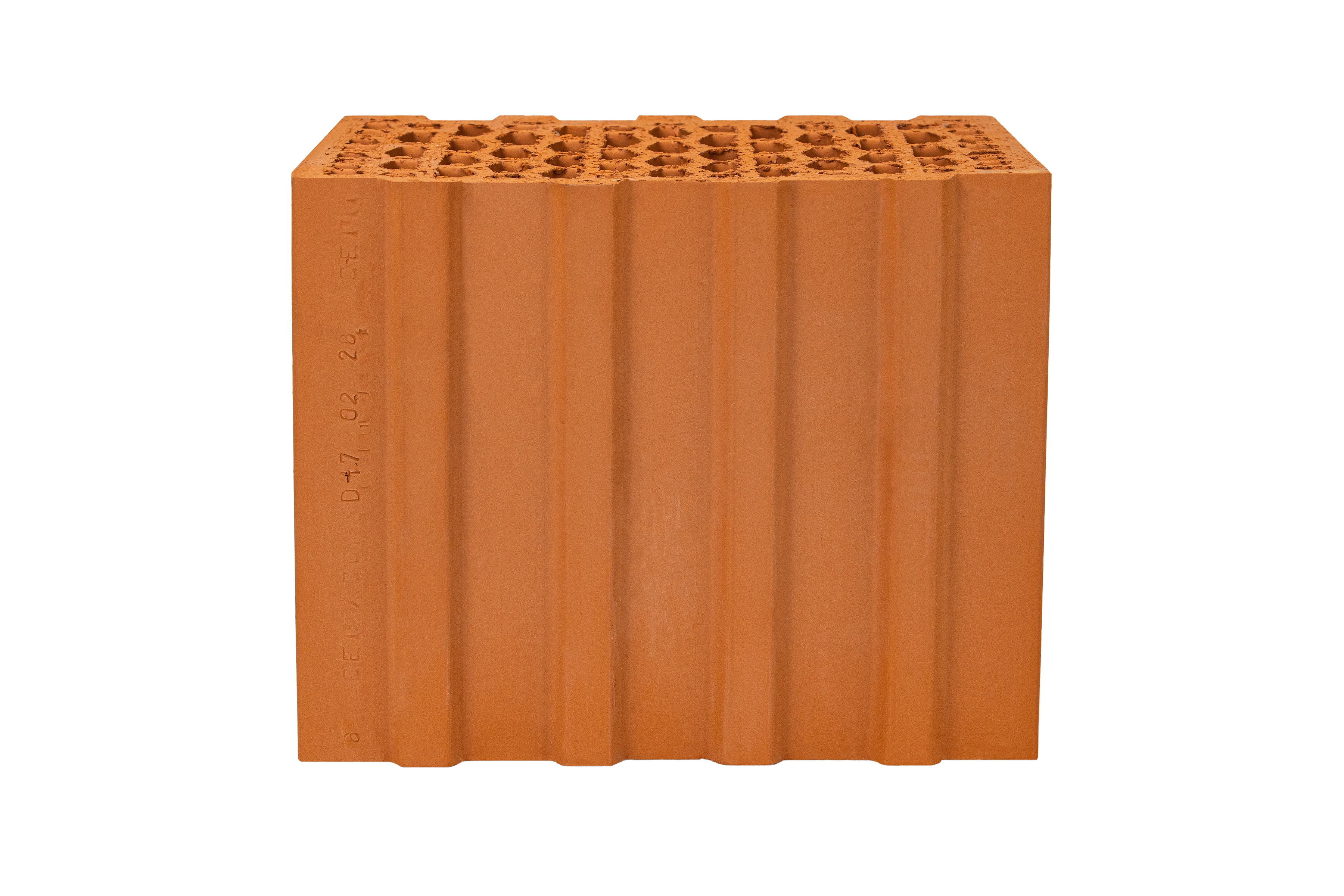

EVOCERAMIC 30 NF

Cărămidă cu nut și feder

Size: 250/300/238 mm

Walls: interior, exterior; non-load-bearig

Wall thickness: 300mm

Ask for more details

Interlocking nib system

With a perfect joint, this type of fitting ensures a solid and durable connection, reducing the risk of displacement or damage to neighboring elements

Reduced execution time

Installation is faster and requires less labor compared to other systems. The boards fit together easily, without requiring additional cutting, which reduces construction time and costs.

Improved thermal performance

Heat loss is reduced due to tight jointing, which contributes to energy savings and lower heating and cooling costs.

Technical Data

Download pdf

Sizes:

250/300/238 mm

Thermal conductivity (λ_{10, dry, item}):

0.198 W/mK

Average compressive strength (f_{b, med}):

11 N/mm2

Hollows volume:

≤ 55%

Average weight/brick

aprox. 14,5 kg

Bulk Density:

aprox. 750 kg/m³

Reaction to fire:

Class A1

No. bricks/m³ of masonry:

53 pcs.

No. bricks/m² of masonry:

16 pcs.

Mortar consumption/m³ of masonry:

60 litri/m³

Labor time/m³ of masonry:

2.20 hours/m³

Masonry type:

non-load-bearig

Usage:

interior, exterior

No. bricks/pallet (1000x1200mm)

64 pcs. /pallet

No. m³ of masonry/pallet

1.20 m³/pallet

Thermal transfer resistance (R)

1.26 m2K/W

Download pdf
